Description
SPECIFICATIONS
- Graphics Processing

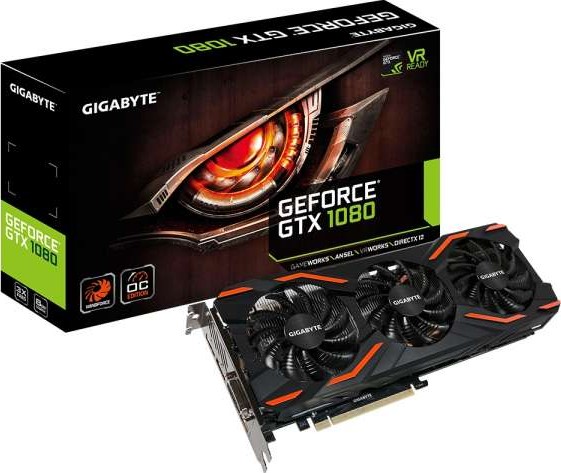

- GeForce® GTX 1080
-
Core ClockBoost: 1797 MHz / Base: 1657 MHz in OC mode
Boost: 1771 MHz / Base: 1632 MHz in Gaming mode -
CUDA® Cores2560
-
Process Technology16 nm
-
Memory Clock10010 MHz
-
Memory Size8 GB
-
Memory TypeGDDR5X
-
Memory Bus256 bit
-
Card BusPCI-E 3.0 x 16
-
Digital max resolution7680×4320
-
Multi-view4
-
Card sizeH=41 L=280 W=114 mm
-
PCB FormATX
-
DirectX12
-
OpenGL4.5
-
Recommended PSU500W
-
Power Connectors8 pin*1
-
OutputDual-link DVI-D *1
HDMI-2.0b*1 (Max Resolution: 4096×2160 @60 Hz)
Display Port-1.4 *3 (Max Resolution: 7680×4320 @60 Hz) -
SLI Support2-way SLI HB
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
